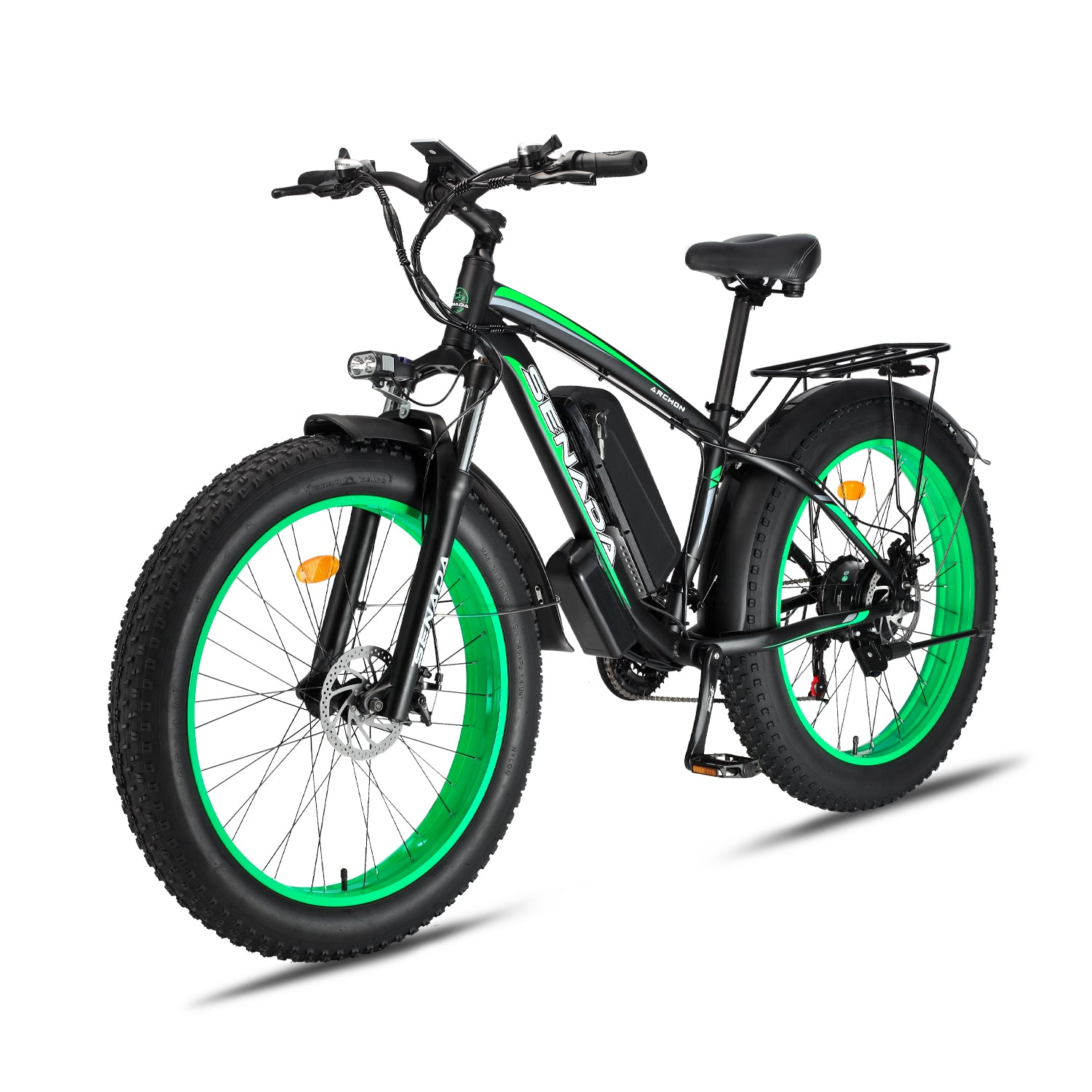

All Terrain Fat Tire EBike | 1000W

ARCHON-BB

Regular price $1,299.00 Sale price $1,399.00
/
[*UL 2849 Certified] Upgraded 48V 26" Fat Tire Beach Snow Electric Mountain Bike (1000W) + Rear Rack & Fenders

In Stock : ships within 3 business days.
Color

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Specifications

  • Features
  • Mechanical
  • Electronics
  • Parts
  • Safety
  • Dimensions & Capacity
  • Warranty
Features
Motor 1000 watt
Battery 48 volt 17.5 amp-hour
Max Load 330 lbs (150 kg)
Range 65 miles (105 km)
Recommended Rider Height 5'7" ~ 6'6" (170cm ~ 198cm)
Calculated from the average heights of the test riders.
Included Battery, charger, pedals, assembly toolset,
assembly guide, additional hardware, zip ties
Warranty 2 Years
Mechanical
Motor 1000 watt (1100 watt peak), 82 N.m, toothed, brushless hub motor
Battery 48 volt 17.5 amp-hour li-ion battery. Waterproof IP65 (included)
Range 33~65 miles (53~105 km)
Charger Input AC100V-240V 2A, Output DC54.6V 2.0Ah Smart Charger (included)
Battery Charge Time 7~9 hours
Battery Lifetime 500-600 cycles
Frame 6061 Aluminum full suspension frame
Electronics
Controller 48V 25A, IP67
Display M5 LCD display, Smart Computer
Headlight 450 lm
Taillight With brake light function
Parts
Tires Chaoyang 26" x 4" fat tires
Throttle Half twist throttle
Seat post 300mm × 30.4mm adjustable height
Crank Prowheel 52T
Pedal Aluminum alloy pedal with reflectors
Chain 118 links
Freewheel Shimano 3×7 speed gear shifter system
Kickstand Heavy duty aluminum
Safety
Brake lever Anti-slip grip levers with motor cutoff switch
Brake Speed series 160mm brakes
Transmission Shimano gear shift system 21-speed
Front fork Suspension fork with lockout function
Dimensions & Capacity
Bike Weight 67 lbs (31 kg) with battery
Bike Dimension Height 35.4”-39.4“ (90-100 cm) / Length 74.8” (190 cm)
Packing Size and Weight 58x11x31in 84lbs (147x28x79cm 38Kg)
Total Payload Capacity 330 lbs (150 kg)
Warranty
Frame 2 years
Parts 2 years
Battery year
Terms & Conditions This warranty only applies to the original owner of a Senada bike and is limited to the replacement of defective parts.
For more information, please visit the warranty page.

Bike Dimension

What's In The Box

EASY TO ASSEMBLE

Your Archon comes 90% pre-assembled. Just unbox, mount the front wheel, put pedals in place, turn some bolts here and there and you are ready to ride in 40 minutes or less!

WHAT'S IN THE BOX

Assembly Toolset. Allen keys, wrench, charger, etc..

Battery
Fenders
WE'VE GOT YOUR BACK

We not only make amazing products but strive to provide the best experience and support to our customers. When you buy a Senada you get peace of mind knowing we will be there whenyou need it.

  • 2 Years warranty. All Senada bikes come with 2 years warranty in frame and parts, and 1 year warranty on the battery. Learn More
  • Customer support. We offer you many ways to reach out: call, text, message, ticket system.
  • Community. When you become a Senada owner you also join a Senada Owners community online where you can share your new happy Ebike life, ask questions and get answers from fellow Senada owners. Join

Overview

Electric Mountain Bike ARCHON

Get ready to conquer any terrain with the ARCHON's powerful 1000W motor and long-lasting 48V battery. With up to 65 miles of range per charge, you can take on the toughest hills and longest rides without breaking a sweat.
1000W
Motor
48V 17.5Ah
Battery
65 Miles
Max Range
7-9 Hours
Charging Time
330Lbs
Max Load
Class 2/3
Speed

SPEED|

UP TO 30 MPH

RANGE|

UP TO 65 MILES

BATTERY|

48V 17.5AH

Strength & Stability
Thanks to its durable front-suspension fork, Archon is able to significantly reduce the impact of road surfaces on the frame and moderate vibrations caused by uneven terrain, making it an ideal choice for sand, snow, mountain tails and other bumpy roads.
Comfort & Convenience
Archon is equipped with a variety of impressive features, including a durable front-suspension fork for added comfort, fat tires that provide excellent grip and cushioning, sturdy fenders, and a rack. These features make the bike more durable and practical, while an adjustable seat post ensures easy access for many riders.
Comfort & Convenience
Archon is equipped with a variety of impressive features, including a durable front-suspension fork for added comfort, fat tires that provide excellent grip and cushioning, sturdy fenders, and a rack. These features make the bike more durable and practical, while an adjustable seat post ensures easy access for many riders.
Product Highlights
Power and Range
1000W Hub Motor
With 1000W continuous power (1300W Max Output) and 82Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
48V 17.5Ah Lithium Battery
ARCHON is equipped with a Lithium-ion 48V 17.5Ah removable battery to ensure a long life span and high performance. The bike range per charge is over 65 miles per charge on pedal-assist mode and around 33 miles on pure electric power mode. We offer a 1-year warranty on the original battery.
Smart LCD Display
Backlight display provides speed, mileage, power, etc.. Totally programmable, together with the mechanical pedaling system allows you for a total customization of speed options and other safety settings.
Made of Quality Components
Senada strives to strike the right balance between price and quality components.
4.0" MOUTAIN BIKE FAT TIRES
26"x4" comfort fat tires provide upgraded grip and traction on rugged roads. Even on some troublesome terrains, these tires can provide you safe and smooth riding experience.
160MM MECHANICAL DISC BRAKES
Both the front and rear 160mm mechanical disc brakes provide ample stopping power, ensure that e-bike can be stopped swiftly as well as smoothly.
PORWHEEL ALUMINUM CRANKSET
Durable Prowheel aluminum crankset and the crankset guard provide further protections to the chain ring and help the chain stay to travel over rough terrain.
SHIMANO 21 SPEED GEAR SHIFT SYSTEM
The Shimano 21 speed freewheel means you can shift to a larger cog for uphill riding and downshift to a smaller cog at high speeds. In combination with the pedal-assist system, you can adjust a suitable speed to complete your journey.
SUSPENSION FORK WITH EASY LOCKOUT OPERATION
The full aluminum suspension control locking fork has 100mm of travel.
LED HEADLIGHT
The headlight is bright enough to make night driving much safer and more enjoyable. It comes with 450 lm brightness and is integrated with a horn.
Designed for Your Comfort
Our bike is designed with your comfort and safety in mind.
MOUNTAIN BIKE SADDLE SEAT
An ergonomically designed saddle features a comfortable riding experience, specially made for pressure relief.
HALF TWIST THROTTLE
The half-twist throttle gives you a comfortable grabbing experience, it is easy to switch between pedal-assist and full throttle.
REAR RACK AND FENDERS
The upgraded rear rack suit the bike nicely, the weight payload is 65 lbs. Full-coverage fenders help you avoid most of the mud splash.
Geometry
Tailor-Fit For Amazing Rides

  • A - Stem to Saddle 23.6'' / 60cm
  • B - Wheel Base 46.1'' / 117cm
  • C - Total Length 74.8'' / 190cm
  • D - Wheel Diameter 28.7'' / 73cm
  • E - Handlebar Height41.7'' / 106cm
  • F - Seat Height 35.4''~39.4'' / 90~100cm
  • G - Handlebar Width 28.7'' / 73cm
  • H - Standover Height 33.1'' / 84cm
  • I - Bottom Bracket Height 13'' / 33cm

Review Video

FAQS

ARCHON comes about 95% assembled, there are some final assembly and adjustments needed, like the front wheel, the handlebar, the seat, the pedals, the headlight, the fenders, and the rear rack.

For any assembly questions, you can download the instructions on our website https://senadabikes.com/pages/tools, or, contact our support team via contact@senadabikes.com

There is a quick release skewer for installing the front wheel, place the front wheel on the wheel hub, then tighten and lock the quick release skewer.

There is a spring on each side of the quick release skewer. The small end of the spring is inward and the big end is outward. The nuts on the front wheel do not need to be removed.

In addition, please make sure both sides of the fork is clipped on the hub, not on the quick release skewer.

https://www.youtube.com/watch?v=_Ba6htgL7hE

*Please check the tire position before and after inflating the tire, inspect the wheel to make sure the bead seat line is aligned to the rim, the bead is uniformly seated and the inner tube is not poking out from the underneath of the tire.

1. Look for the “L” or “R” sign on the axle or wrench flat.

2. The left pedal needs to tighten counterclockwise, the right pedal is tightened clockwise.

3. The thread of the pedal and crank arm needs to be aligned carefully, if the thread is misaligned, the crank will be mangled or cross-threaded.

4. It is suggested to tighten the pedals with a pedal wrench, and use some anti-seize compound if have.

The front fender and the headlight share the same set of bolts and nuts. Here is a video guide on how to assemble the fenders, headlight, and rear rack:

https://youtu.be/ksqHfZAb4zU

Install the rear rack on ARCHON: https://youtu.be/la1WIuYghH4

1) Install the fully charged battery on the bike;2) Insert the ignition key on the right side of the handlebar to turn on the power;3) Long press the M button on the display to turn on the system;

4) PAS 1 or 2 is the recommended starting speed (PAS 0 means no motor assist);

5) You can now ride the bike by using the twist throttle or pedals (with power assist).

Please follow the steps or video below to change the settings:

1) Long press '+' and '-' at the same time to enter settings;

2) Press 'M' till the display shows '02' (mileage unit);

3) Press '+' or '-' to change it, '0' is KM, '1' is MILE;

4) Long press '+' and '-' at the same time to save and quit the settings.

https://www.youtube.com/watch?v=Q33moghTt3c

One set of key (smaller) is for ignition on the right side of the handlebar:

The other set of key (bigger) is to lock/unlock the battery on the bike, it is wrapped with foam together with the battery.

https://www.youtube.com/watch?v=Fi3Y1pgPqmw

Each key set has two same keys, we suggest you keep one on each at home just in case.

Please visit FAQ section to get more answers or solutions, or, you can ask Senada support team directly at contact@senadabikes.com.
