*UL Certified|48V 14AH 500W| 20" Practical Foldable Ebike


Regular price $899.00 Sale price $999.00 ( You Saved  $100.00! )
Flash sale will end soon,only 30 units left in stock, don’t miss out!

$50 OFF
Your First Bike
$220 OFF
Any 2 bikes
Price Guarantee : Lowest price of the year, Bikes free fast ship within 2-4 working days time.






48V 14AH

Senada Foldable Electric Bike AUSTIN

Uniquely designed folding electric bike: The design of the 20" folding trolley pays great attention to details and user experience. The body adopts a streamlined and folding design, which reduces wind resistance and improves driving efficiency. Every part on the body has been carefully designed, which is both beautiful and practical.
48V 14Ah
62 Miles
Max Range
5-6 Hours
Charging Time
Max Load
Class 2/3


  • Features
  • Mechanical
  • Electronics
  • Parts
  • Safety
  • Dimensions & Capacity
  • Warranty
Motor 500 watt
Battery 48 volt 14 amp-hour
Max Load 280 lbs (127 kg)
Range 62 miles (100 km)
Recommended Rider Height 4' 11" ~ 6' 3" (150cm ~ 190cm)
Calculated from the average heights of the test riders.
Included Battery, charger, pedals, assembly toolset, assembly guide
Warranty 2 Years
Motor 500 watt (700 watt peak), 52 N.m, toothed, brushless hub motor
Battery 48 volt 14 amp-hour li-ion battery. Waterproof IP54 (included) (included)
Range 28~62 miles (46~100 km)
Charger Input AC100V-240V 2.5A, Output DC54.6V 3.0Ah Smart Charger (included)
Battery Charge Time 5~6 hours
Battery Lifetime 800-1000 cycles
Frame 6061 Aluminum full suspension frame
Controller 48V 18A, IPX54
Display 4.21" LCD color display, Smart Computer
Headlight 650 lm
Brakelight 30 lm
Tires Chaoyang 20" x 3" fat tires
Throttle Twist Throttle
Saddle Yixing soft saddle
Seat post 350mm × 27.2mm adjustable height
Crank 42T
Pedal Plastic alloy pedal with reflectors
Chain KMC chain
Freewheel Shimano 7 speed gear shifter system
Kickstand Heavy duty iron alloy
Brake lever Anti-slip grip levers with motor cutoff switch
Brake ALLMAX PRO 180mm brakes
Gears Shimano gear shift system 7-speed
Front fork YX suspension fork
Dimensions & Capacity
Bike Weight 61.2 lbs (27.8kg) with battery
Bike Dimension Height 46“ (117 cm) / Length 64.9” (165 cm)
Packing Size and Weight 38x15x29.3in 76lbs (97x38x74.5cm 34.5Kg)
Total Payload Capacity 280 lbs (127 kg)
Frame 2 years
Parts 2 years
Battery 1 year
Terms & Conditions This warranty only applies to the original owner of a Senada bike and is limited to the replacement of defective parts.
For more information, please visit the warranty page.

Bike Dimension

What's In The Box


Your AUSTIN comes 90% pre-assembled. Just unbox, mount the front wheel and handlebar, put pedals in place, turn some bolts here and there and you are ready to ride in 40 minutes or less!


Assembly Toolset. Allen key set, wrench, charger, etc..


We not only make amazing products but strive to provide the best experience and support to our customers. When you buy a Senada you get peace of mind knowing we will be there whenyou need it.

  • 2 Years warranty. All Senada bikes come with 2 years warranty in frame and parts, and 1 year warranty on the battery. Learn More
  • Customer support. We offer you many ways to reach out: call, text, message, ticket system.
  • Community. When you become a Senada owner you also join a Senada Owners community online where you can share your new happy Ebike life, ask questions and get answers from fellow Senada owners. Join
Portability & Efficiency
The electric bike has a high-quality 500W brushless motor, providing strong power for smooth rides on different terrains. It is perfect for daily commuting, with a top speed of 25mph and the ability to ride easily on snow, mountains, beaches, and urban roads, offering the ultimate riding experience.
Portability & Efficiency
The electric bike has a high-quality 500W brushless motor, providing strong power for smooth rides on different terrains. It is perfect for daily commuting, with a top speed of 25mph and the ability to ride easily on snow, mountains, beaches, and urban roads, offering the ultimate riding experience.
Power and Range
500W Hub Motor
With 500W continuous power (700W Max Output) and 62Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
48V 14Ah Lithium-ion Battery
The powerful removable 672Wh battery offers a range of up to 62 miles on pedal-assist mode and around 25 miles on full-throttle mode. IP54 waterproof rating ensures that the battery is protected against water splashes and dust, making it suitable for outdoor use. We provide a 1-year warranty on the original battery.

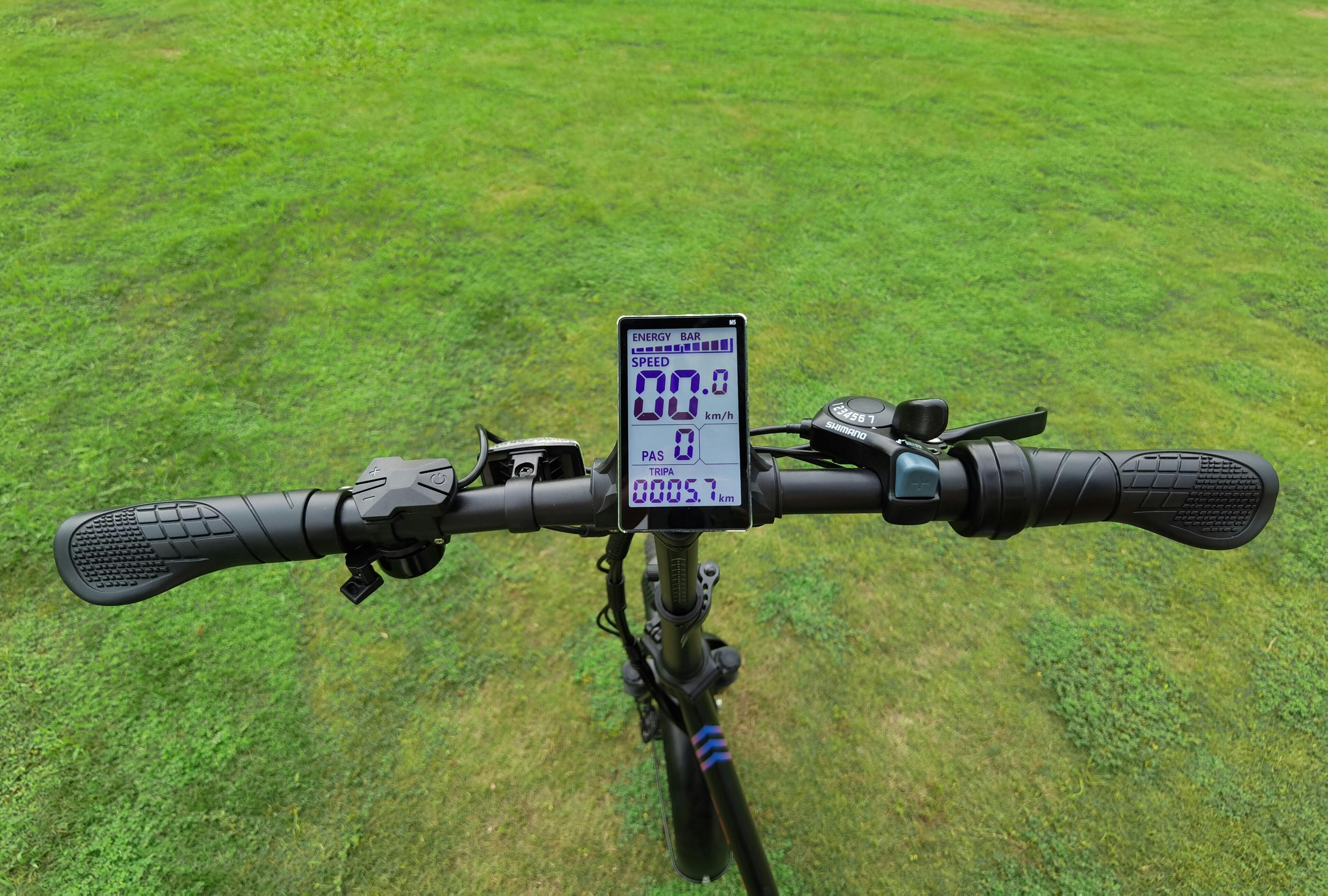

Smart LCD Display
The LCD display shows riding information such as battery, speed, modes, mileage, wattmeter, and more. Coupled with the multi-function control panel, the electric bicycle offers an intelligent and technologically advanced riding experience.
Made of Quality Components
Senada strives to strike the right balance between price and quality components.
The e-bike comes with 20"x3" fat tires, ensuring excellent traction and stability on different terrains, providing a smooth and comfortable riding experience, these fat tires ensure optimal performance and control.
AUSTIN is equipped with 160mm mechanical disc brakes on both the front and rear wheels, delivering sufficient stopping power for swift and smooth braking.
The forged iron crankset and crankset guard on the e-bike offer enhanced durability and protection for the chainring. This ensures that the chain stays securely in place, even when riding over rough terrain.
With the Shimano 7-speed freewheel on the e-bike, you have the flexibility to shift to a larger cog for uphill riding and downshift to a smaller cog when cruising at higher speeds. This, combined with the pedal-assist system, allows you to effortlessly adjust the speed to suit your journey.
The suspension fork absorbs road shocks and impacts, resulting in a more comfortable and smoother ride. Additionally, it improves control and traction, enabling you to navigate through challenging terrains with greater ease.
Equipped with a high-intensity 90 lumens front light, this e-bike ensures excellent visibility even in low-light conditions. The bright and focused beam of the front light illuminates the path ahead, providing enhanced safety and allowing you to see clearly.


ARCHON comes about 95% assembled, there are some final assembly and adjustments needed, like the front wheel, the handlebar, the seat, the pedals, the headlight, the fenders, and the rear rack.

For any assembly questions, you can download the instructions on our website, or, contact our support team via

There is a quick release skewer for installing the front wheel, place the front wheel on the wheel hub, then tighten and lock the quick release skewer.

There is a spring on each side of the quick release skewer. The small end of the spring is inward and the big end is outward. The nuts on the front wheel do not need to be removed.

In addition, please make sure both sides of the fork is clipped on the hub, not on the quick release skewer.

*Please check the tire position before and after inflating the tire, inspect the wheel to make sure the bead seat line is aligned to the rim, the bead is uniformly seated and the inner tube is not poking out from the underneath of the tire.

1. Look for the “L” or “R” sign on the axle or wrench flat.

2. The left pedal needs to tighten counterclockwise, the right pedal is tightened clockwise.

3. The thread of the pedal and crank arm needs to be aligned carefully, if the thread is misaligned, the crank will be mangled or cross-threaded.

4. It is suggested to tighten the pedals with a pedal wrench, and use some anti-seize compound if have.

The front fender and the headlight share the same set of bolts and nuts. Here is a video guide on how to assemble the fenders, headlight, and rear rack:

Install the rear rack on ARCHON:

1) Install the fully charged battery on the bike;2) Insert the ignition key on the right side of the handlebar to turn on the power;3) Long press the M button on the display to turn on the system;

4) PAS 1 or 2 is the recommended starting speed (PAS 0 means no motor assist);

5) You can now ride the bike by using the twist throttle or pedals (with power assist).

Please follow the steps or video below to change the settings:

1) Long press '+' and '-' at the same time to enter settings;

2) Press 'M' till the display shows '02' (mileage unit);

3) Press '+' or '-' to change it, '0' is KM, '1' is MILE;

4) Long press '+' and '-' at the same time to save and quit the settings.

One set of key (smaller) is for ignition on the right side of the handlebar:

The other set of key (bigger) is to lock/unlock the battery on the bike, it is wrapped with foam together with the battery.

Each key set has two same keys, we suggest you keep one on each at home just in case.

Please visit FAQ section to get more answers or solutions, or, you can ask Senada support team directly at
